The Complete Process of Creating a Resin 3D Printed Figure

Creating a resin 3D printed figure is a detailed and artistic process that combines advanced technology with fine craftsmanship. Each figure begins as a digital design and is carefully transformed into a physical model through several stages — from slicing and printing to painting and finishing.

The process starts with a digital sculpt, which is imported into software such as Photon Workshop for slicing. In this stage, the 3D model is divided into thin layers, supports are generated, and the file is prepared for printing. Once the model is ready, it is sent to a resin 3D printer, where UV light solidifies liquid resin layer by layer. This precise method allows even the smallest details to be captured with exceptional accuracy.

After the print is complete, the figure is removed from the build plate and cleaned with isopropyl alcohol (IPA) to eliminate any remaining uncured resin. The printed parts are then dried, and support structures are carefully removed. If any marks or imperfections remain, they are gently sanded to achieve a smooth surface before painting.

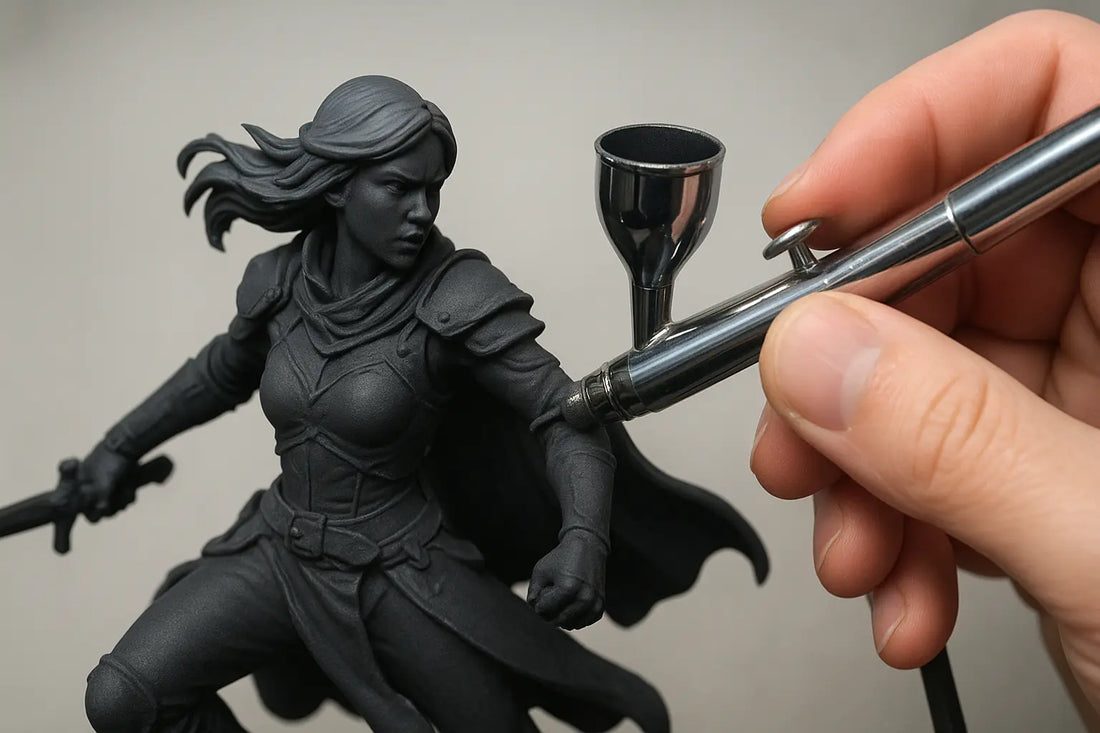

Before color is applied, all pieces are coated with a black primer, which helps the paint adhere evenly and enhances shadows and depth. The painting phase is performed using airbrush techniques and high-quality paints from brands such as Vallejo and Green Stuff World. Each layer of color is applied based on a reference image, ensuring accurate tones, gradients, and highlights that bring the figure to life.

Once the painting process is finished, a protective varnish is applied to seal and preserve the surface. Depending on the desired effect, either matte or glossy varnish is used — though matte finishes are most often preferred for their realistic and professional look.

From digital slicing to the final coat of varnish, each step in resin figure production requires precision, patience, and an eye for detail. The result is a high-quality, custom 3D printed figure that blends modern technology with artistic craftsmanship.

At 3dherofigure.com, every model is created with this level of care, ensuring that each piece captures the imagination and artistry behind resin 3D printing.
